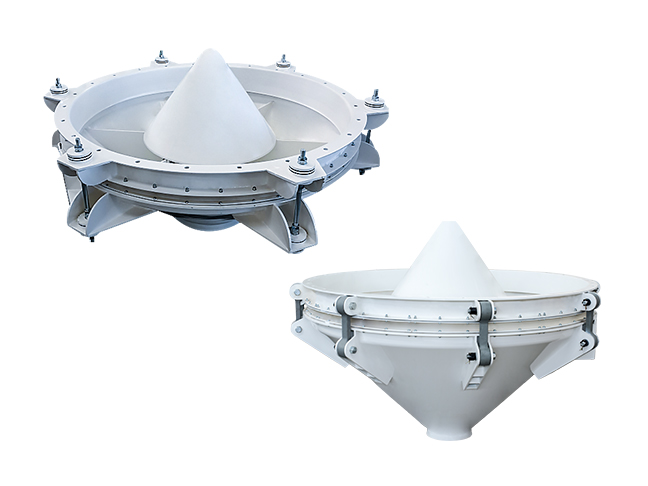

Vibro discharger ZCCD/ZCCL is a feeding device installed under a bin bottom to prevent material bridging and ensure a consistent feeding rate. Long service life silicon rubber seals ensures dust free operation. Different model designs are utilized for different products.
| Model | Speed (rpm) |
Power (kw) |
Dimension(mm) | Weight (kg) |
|||||

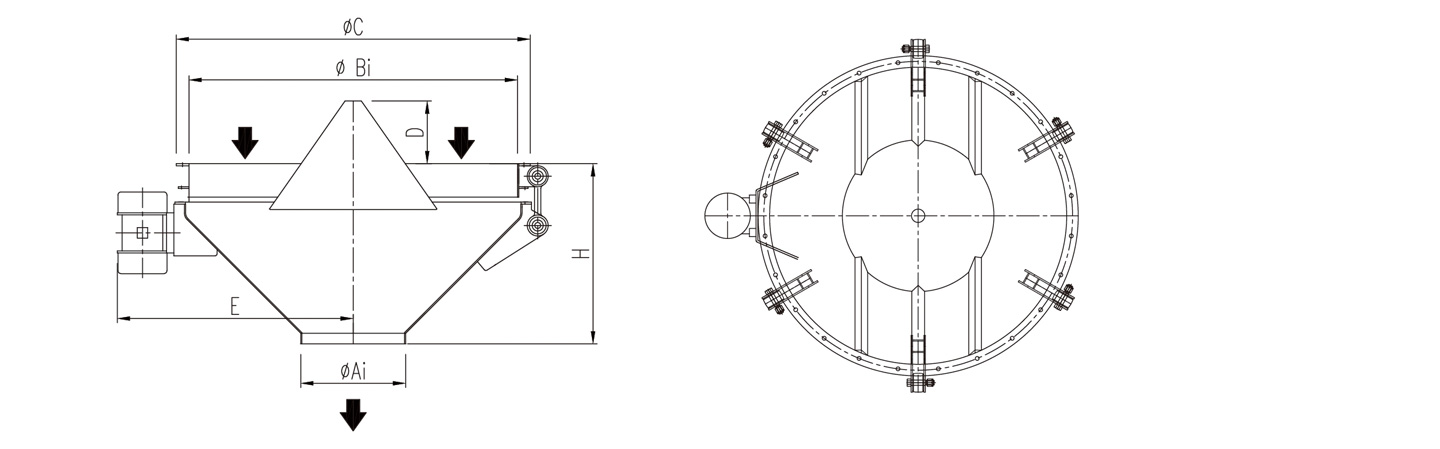

| ΦAi | ΦBi | ΦC | D | E | H | ||||
| ZCCD/L-100×30 | 1430 | 0.37 | 300 | 970 | 1090 | 33 | 826 | 659 | 220 |
| ZCCD/L-130×30 | 0.37 | 300 | 1268 | 1390 | 60 | 973 | 810 | 300 | |
| ZCCD/L-130×50 | 0.37 | 500 | 1268 | 1390 | 95 | 973 | 710 | 280 | |
| ZCCD/L-160×30 | 0.55 | 300 | 1568 | 1690 | 95 | 1126 | 960 | 570 | |
| ZCCD/L-160×50 | 0.55 | 500 | 1568 | 1690 | 299 | 1126 | 860 | 550 | |
| ZCCD/L-180×50 | 0.55 | 500 | 1768 | 1890 | 145 | 1226 | 960 | 720 | |
| ZCCD/L-200×50 | 0.75 | 500 | 1968 | 2090 | 275 | 1326 | 1060 | 820 | |
