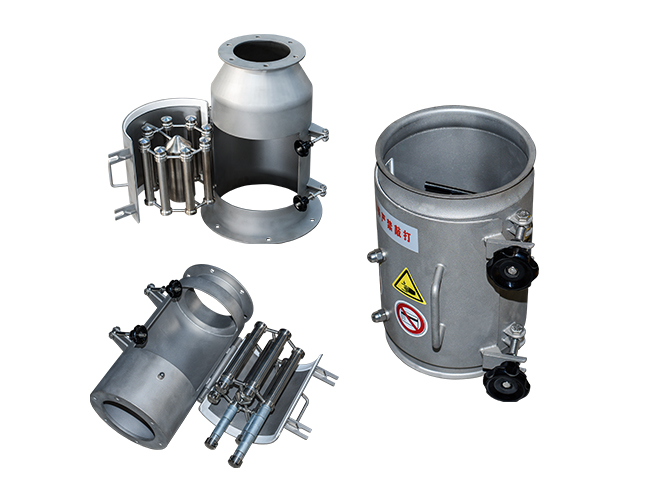

Tube magnet YCXL/YCXHis is utilized to separate metal impurities in grain raw material, thus it is widely used in grain industries. Magnet core adopts rare earth permanent magnetic materials, magnetic strength can reach up to 2,500 Gs. The casing of this magnet can be mild steel or SST 304. The magnets casing outline allows optional magnetic effect to take place on the material as it passes through by gravity. The magnets character has a simple structure for easy maintenance and cleaning.
| Model | YCXL/H-12 | YCXL/H-15 | YCXL/H-20 | YCXL/H-25 | YCXL/H-30 | |
| Capacity (t/h) | Powder r=0.5 | 5 | 10 | 20 | 35 | 45 |
| Grains r=0.75 | 8 | 15 | 30 | 50 | 70 | |
| Weight (kg) | 15 | 50 | 65 | 100 | 150 | |

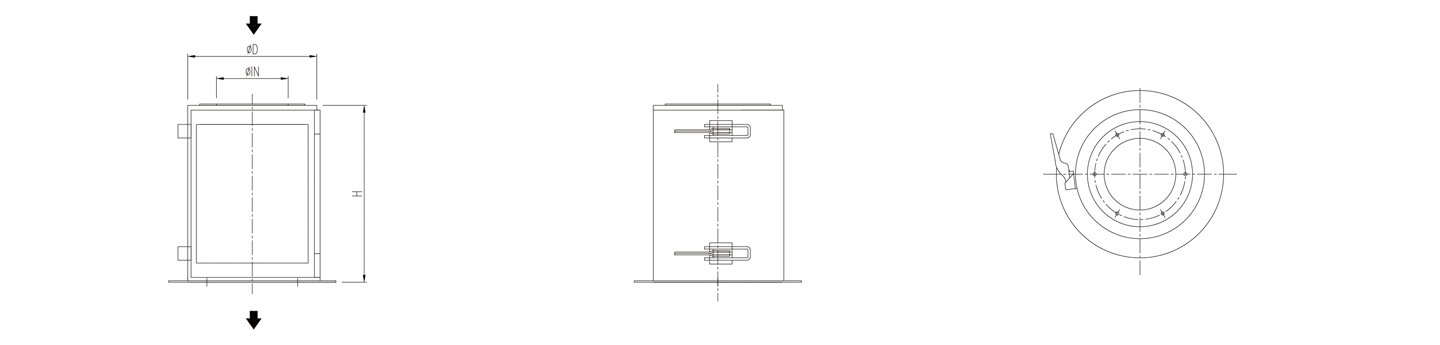

| Inlet Dia. ΦIN(mm) | 120 | 150 | 200 | 250 | 300 | |
| Outlet Dia ΦD(mm) | 200 | 270 | 295 | 370 | 410 | |
| Height H(mm) | 400 | 450 | 450 | 450 | 500 | |
| Strength | ≥200mT(2500Gs) | |||||
| Efficiency(%) | ≥99% | |||||
