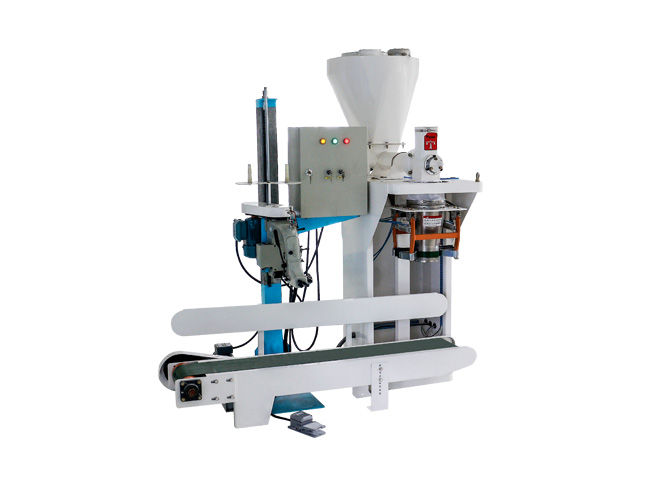

WDBZD series packer is composed of feeding screw conveyor, sensor, bag clamp holder, posser, sewing machine, bag conveyor, electronic and pneumatic control unit. It is widely used for automatic weighing process of powdery material to achieve high speed packing, automatic target weight control, filling, sewing with operator assistance and conveying. The control system ensures high accuracy and reliable performance.
| Model | Dump Weight (kg) |
Power (kW) |
Maximum (bags/h) |

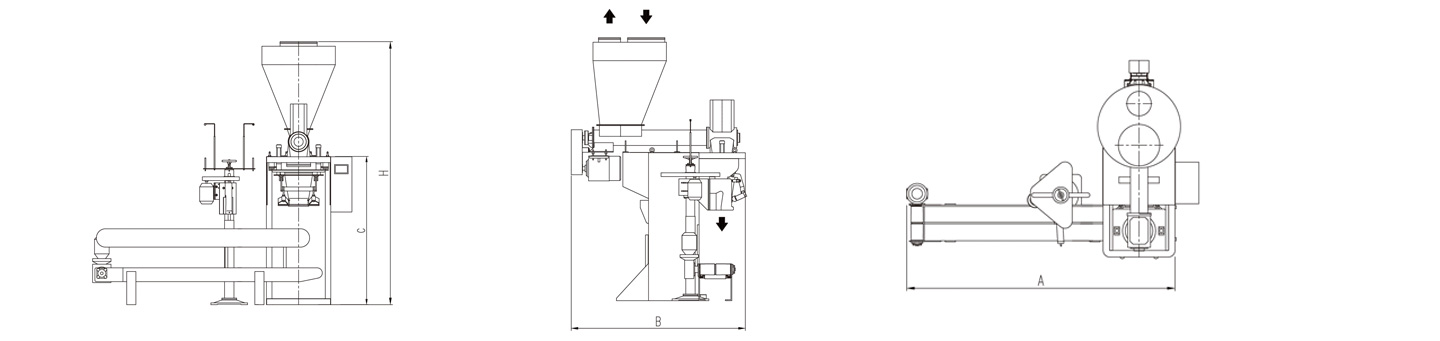

Outline size(mm) | |||
| A | B | C | H | ||||
| WDBZD-10 | 2-10 | 2.2+0.75+0.37 | 320-350 | 2110 | 1177 | 1475 | 2248 |
| WDBZD-25 | 15-25 | 5.5+0.75+0.37 | 250-300 | 2470 | 1760 | 1655 | 2590 |
| WDBZD-50 | 25-50 | 5.5+0.75+0.37 | 260 | 2850 | 1865 | 1730 | 3092 |
