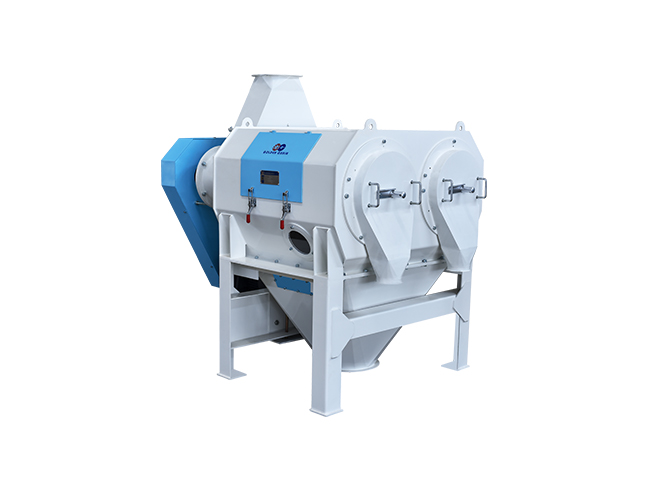

Rotary sifter DYSD/DYSS is utilized within the wheat cleaning, flour and feed mill operations. The machine can remove various large impurities or can grade material into fine and coarse separations to ensure the purity or grade of material for wheat screenings flour or feed which can be sent to the next equipment step. Different machine types are available to suit varying applications and capacity.
| Model | Cylinder dia. (mm) |
Cylinder dia. (mm) |
Speed (r/min) |
Capacity (t/h) | Air vol. (m³/min) |
Power (kw) |
Weight (kg) |
||||
| Sieve mesh(mm) | |||||||||||
| Φ1.0 | Φ1.5 | Φ2.5 | Φ3.0 | Φ4.0 | |||||||
| DYSD-40×90 | 400 | 900 | 560-600 | 10 | 15 | 25 | 30 | 12-16 | 5.5 | 400 | |
| DYSS-40×90×2 | 400×2 | 900×2 | 560-600 | 20 | 30 | 60 | 60 | 12-16 | 11 | 600 | |
| DYSD-30×71 | 300 | 710 | 550 | 3-5 | 6-8 | 8-10 | 10-12 | 6-8 | 3 | 260 | |
