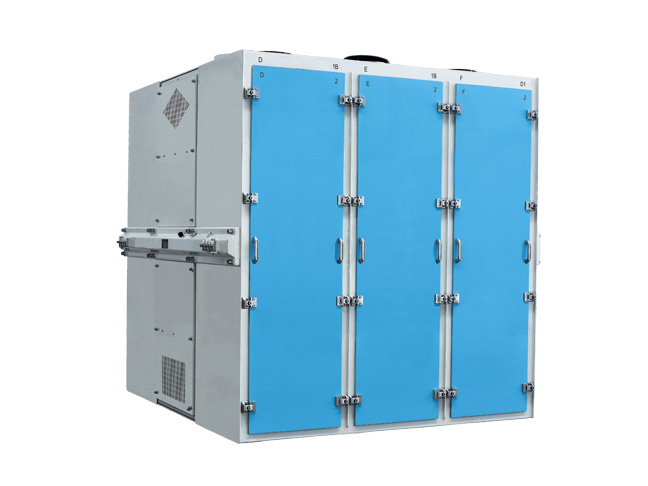

Plansifter GFS is utilized to classify intermediate products in accordance with their particle size at all milling stages and to separate out different flour types per quality required. Outer frames can be food grade polyurethane (PU) or wood with melamine, while inner frames are aluminum (ALUM) for long service life. The machine can also be used for the grading of different grain types such as rye, corn (maize) etc.

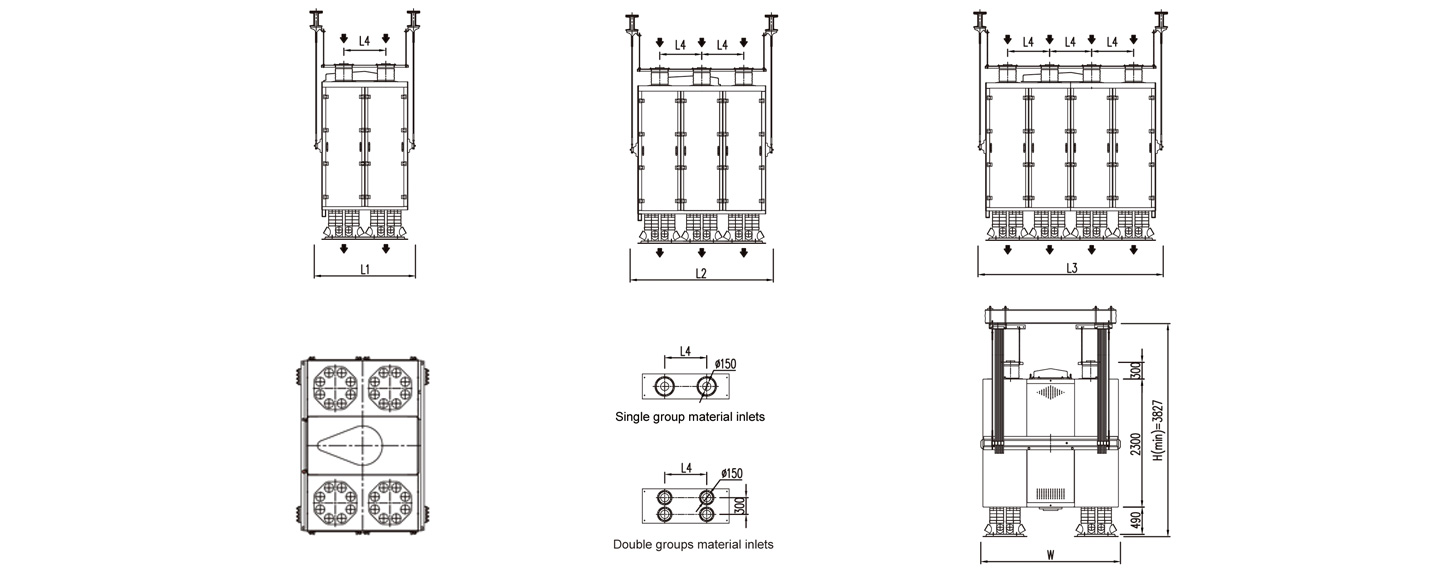

| Model | Sections | Sieve qty/section | Surface (㎡) | Speed (rpm) | Circle Dia. (mm) |
Height of sifter box (mm) | Top frame height (mm) | Power (kw) | Weight (kg) | L4 | Outline size L×W×H (mm) |
| GFS-640×4×27 | 4 | 23-27 | 32.3 | 245 | ≤65 | 1900-1940 | 125 | 3 | 3200 | 755.5 | 1822×2452×3827 |
| GFS-640×6×27 | 6 | 23-27 | 48.4 | 245 | ≤65 | 1900-1940 | 125 | 4 | 4200 | 755.5 | 2577×2452×3827 |
| GFS-640×8×27 | 8 | 23-27 | 64.6 | 245 | ≤65 | 1900-1940 | 125 | 7.5 | 5600 | 755.5 | 3333×2452×3827 |
| GFS-740×4×27 | 4 | 23-27 | 41.3 | 245 | ≤65 | 1900-1940 | 125 | 4 | 3850 | 867.5 | 2045×2670×3827 |
| GFS-740×6×27 | 6 | 23-27 | 62.1 | 245 | ≤65 | 1900-1940 | 125 | 7.5 | 4800 | 867.5 | 2913×2670×3827 |
| GFS-740×8×27 | 8 | 23-27 | 82.7 | 245 | ≤65 | 1900-1940 | 125 | 11 | 6000 | 867.5 | 3781×2670×3827 |
