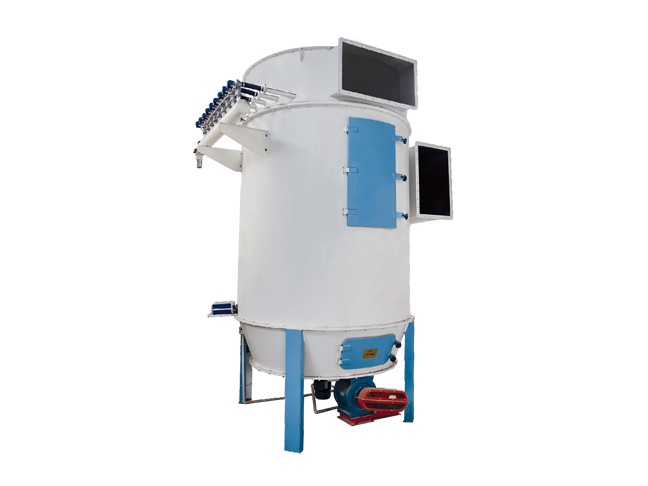

High pressure jet filter GPMC/GZMC has the filter sleeve solenoids installed on the machine body outside for easier access and maintenance. Available with flat or cone bottom. This filter type is suitable for industrial applications to separate dust from air, which operates within negative pressurized environments.

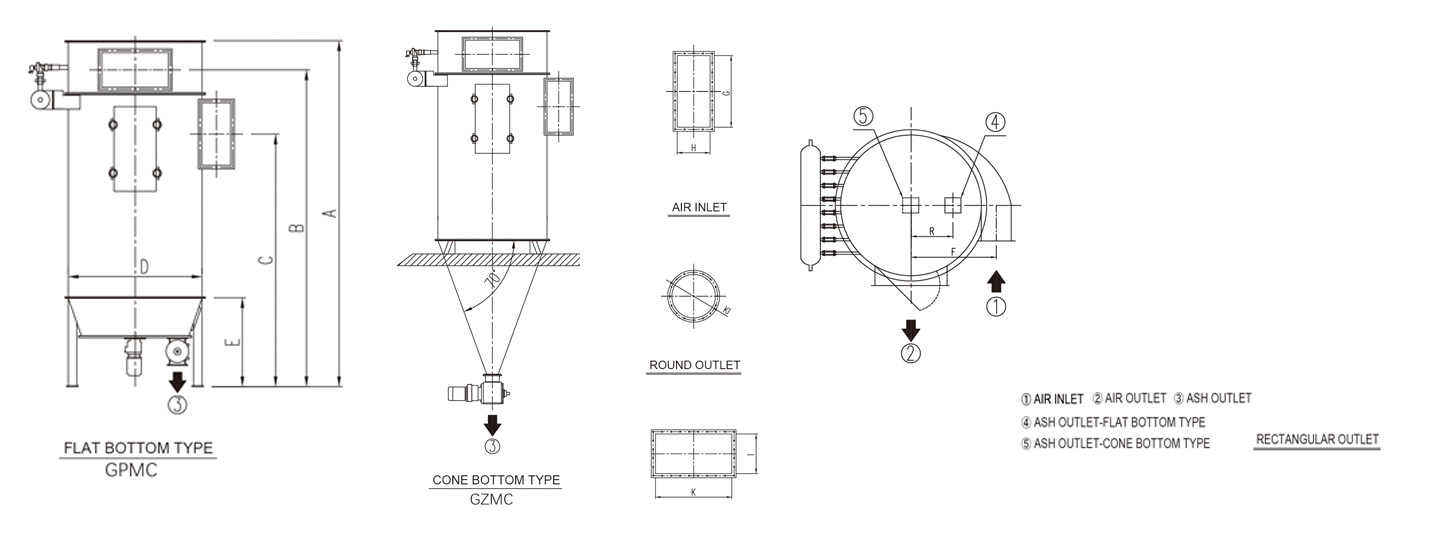

| Model | Sleeve length (mm) |
Filter area (㎡) |
Air vol. (m³/h) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
R (mm) |
F (mm) |
H×G (mm) |
KI (mm) |
Air lock (kw) |
Dust scraper (kw) |
High pressure blower (kw) |
Weight (kg) |
| GPMC-26 | 1800 | 17.6 | 3168-4224 | 3461 | 3156 | 2503 | 1140 | 1050 | 425 | 708 | 275×500 | Φ450 | 0.55 | 1.1 | 1.5 | 1128 |
| 2000 | 19.6 | 3528-4704 | 3661 | 3356 | 2703 | 1184 | ||||||||||
| 2400 | 23.5 | 4230-5640 | 4061 | 3756 | 3103 | 1254 | ||||||||||
| GPMC-39 | 1800 | 25.7 | 4626-6168 | 3461 | 3181 | 2433 | 1370 | 1050 | 430 | 830 | 290×640 | Φ500 | 0.75 | 1.5 | 1634 | |
| 2000 | 28.7 | 5166-6888 | 3661 | 3381 | 2633 | 1715 | ||||||||||
| 2400 | 34.6 | 6228-8304 | 4061 | 3781 | 3033 | 1782 | ||||||||||
| GPMC-52 | 1800 | 35.3 | 6354-8472 | 3461 | 3136 | 2383 | 1580 | 1050 | 470 | 960 | 340×740 | 790×410 | 1.1 | 1969 | ||
| 2000 | 39.1 | 7038-9384 | 3661 | 3336 | 2583 | 2068 | ||||||||||
| 2400 | 47 | 8460-11280 | 4061 | 3736 | 2983 | 2173 | ||||||||||
| GPMC-78 | 1800 | 52.9 | 9522-12696 | 3461 | 3161 | 2361 | 1840 | 1050 | 620 | 1163 | 485×785 | 845×460 | 1.1 | 1.5 | 2.2 | 2745 |
| 2000 | 58.7 | 10566-14088 | 3661 | 3361 | 2561 | 2882 | ||||||||||
| 2400 | 69.1 | 12438-16584 | 4061 | 3761 | 2961 | 3014 | ||||||||||
| GPMC-104 | 1800 | 68.6 | 12348-16464 | 3461 | 3161 | 2336 | 2020 | 1050 | 640 | 1270 | 520×835 | 1090×460 | 1.5 | 3500 | ||
| 2000 | 76.5 | 13770-18360 | 3661 | 3361 | 2536 | 3678 | ||||||||||
| 2400 | 92.1 | 16578-22104 | 4061 | 3761 | 2936 | 3872 | ||||||||||
| GPMC-130 | 1800 | 88.2 | 15876-21168 | 3461 | 3166 | 2303 | 2350 | 1050 | 830 | 1447 | 530×900 | 1200×470 | 1.5 | 1.5 | 3 | 3105 |
| 2000 | 98 | 17640-23520 | 3661 | 3366 | 2503 | 3159 | ||||||||||
| 2400 | 115.2 | 20736-27648 | 4061 | 3766 | 2903 | 3269 |
