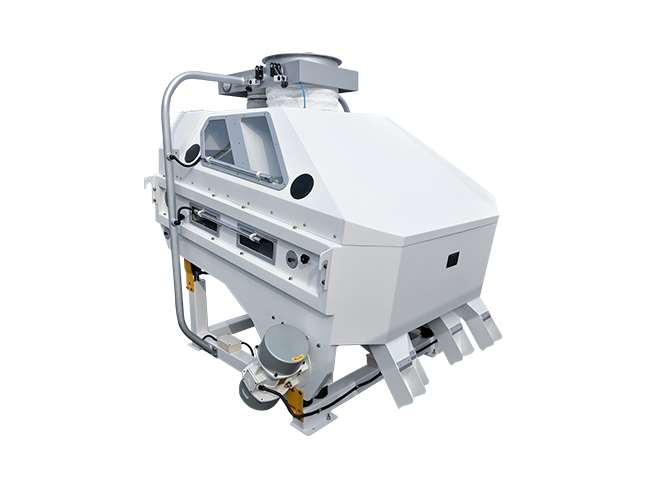

Gravity Destoner FQSX utilizes a combination principle of of air, vibration and sieves. The machine is mainly used for the classification and impurity removal of wheat, paddy, corn and other grains. The machine can segregate light material from the top sieve deck with impurities such as grass seeds, rye, etc., heavy material from the bottom deck and the removal of stones and mud lumps. With the long sieve body, the machine not only increases the sieve area but also improves the stone removal effect dramatically. The air adjusting hood adopts a front and rear separation structure, which can be adjusted separately according to the needs of the operator.
Model | FQSX 125/160 | FQSX 150/160 | FQSX 180/160 | |
Sieve width (mm) | 1258 | 1580 | 1880 | |
Capacity (t/h) | Wheat | 43815 | 15-22 | 22-28 |
Paddy | 43751 | 43816 | 17-23 | |
Power (kw) | 2×0.68 | 2×0.68 | 2×0.68 | |
Air volume (m³/h) | 10000 | 13800 | 16800 | |
Air pressure (Pa) | 1800 | 1800 | 1800 | |
Vibration frequency S-1 | 15.65-1 | 15.65-1 | 15.65-1 | |
Amplitude (mm) | 3-5 | 3-5 | 3-5 | |
Sieve angle (Degree) | 5-9 | 5-9 | 5-9 | |

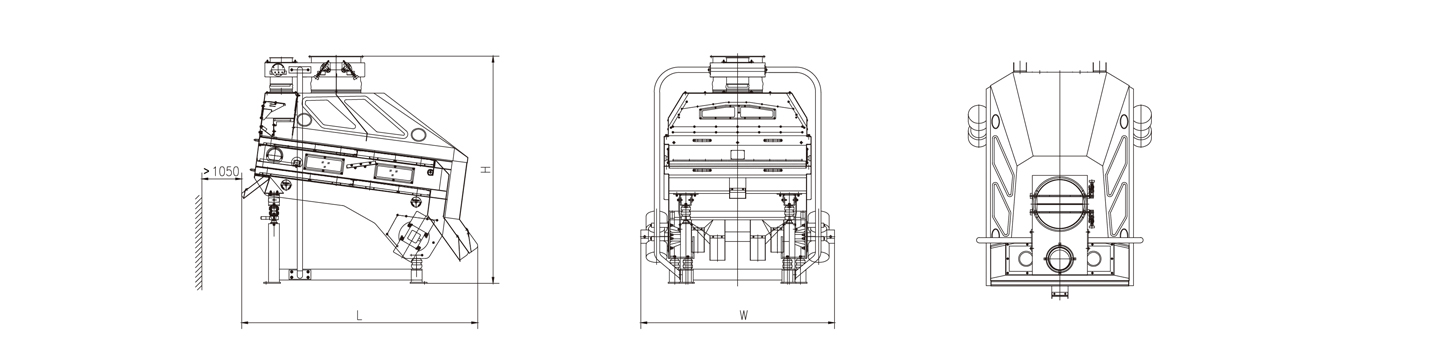

Outline size L×W×H (mm) | 2166×1778×2085 | 2212×2012×2125 | 2212×2312×2149 |
