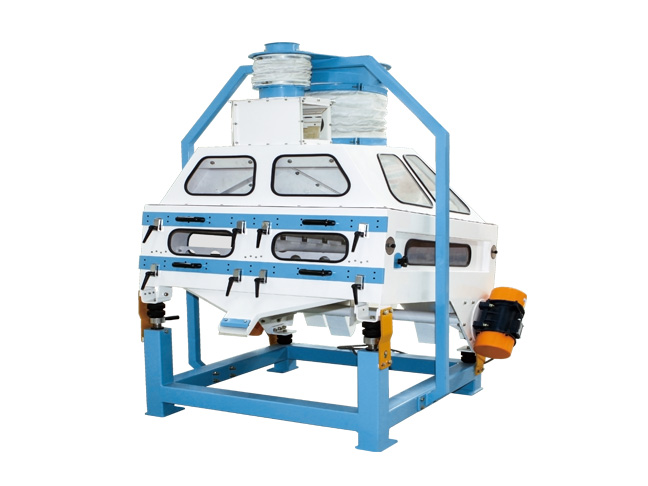

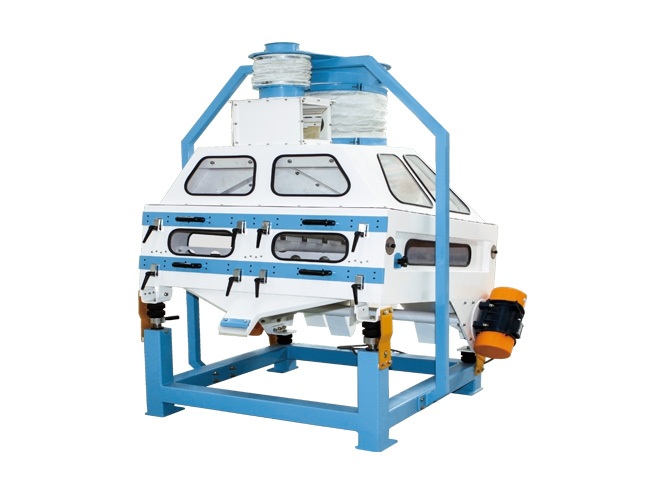

Gravity destoner FQS is an important wheat cleaning machine utilized in cleaning section in a mill. It is mainly used for grading after pre-cleaning, in the first cleaning section for concentrating light wheat with impurities i.e. mustard, grass seed and wheat husks, etc. so this material can be sent downstream for further cleaning, then heavy material with stones and mud ball content which can be separated out. It is also utilized in the second cleaning section after tempering for stone and mud ball removal for raw wheat deemed to have a high stone or mud ball content.
Model | FQS-80a | FQS-100a | FQS-125a | FQS-150a | FQS-180a | |
Sieve width (mm) | 800 | 1000 | 1250 | 1500 | 1800 | |
Capacity (t/h) | Wheat | 6-9 | 8-11 | 12-15 | 15-18 | 17-22 |
Paddy | 4.5-6.5 | 6-8 | 8-11 | 11-13 | 12-16 | |
Power (kw) | 2×0.25 | 2×0.55 | 2×0.55 | 2×0.55 | 2×0.55 | |
Air volume (m³/h) | 6700 | 8400 | 11000 | 13800 | 16800 | |
Air pressure (Pa) | 1800 | |||||
Vibration frequency S-1 | 15.65-1 | |||||
Amplitude (mm) | 3-5 | |||||
Sieve angle (Degree) | 5-9 | |||||

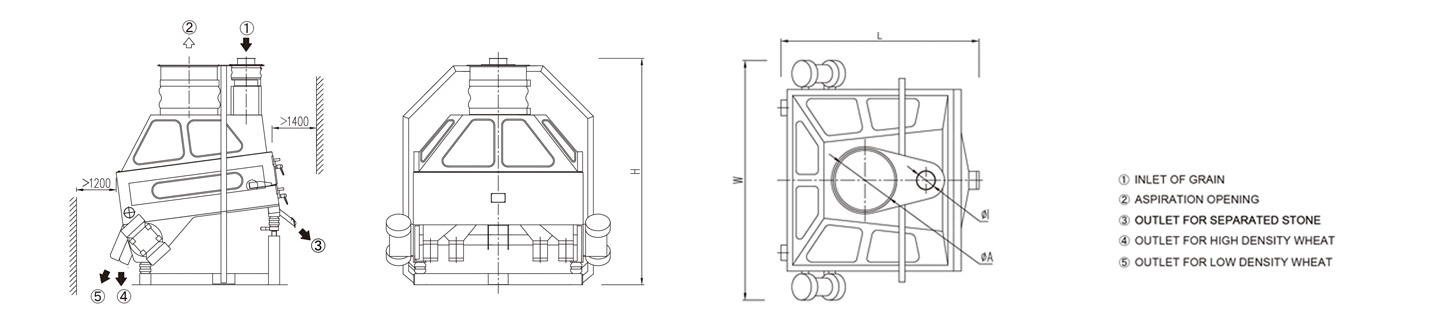

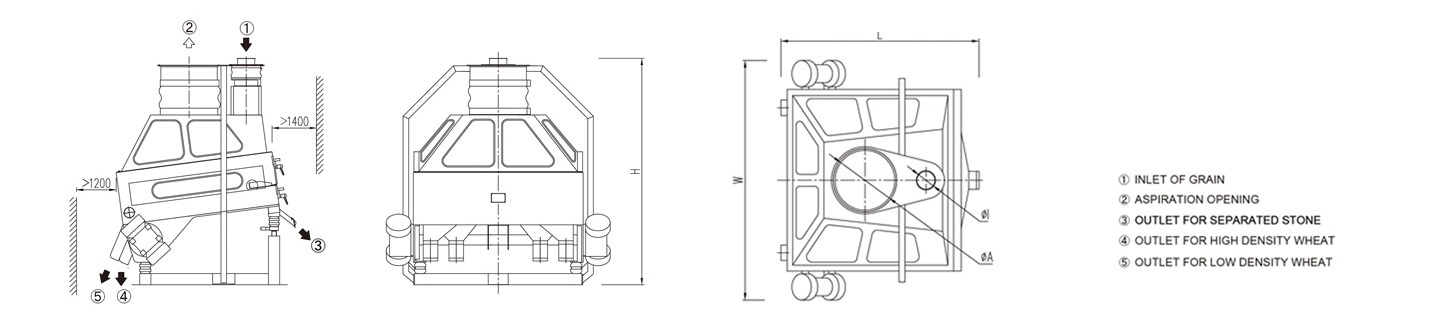

Outline size L×W×H (mm) | 1660×1226×2028 | 1660×1426×2028 | 1660×1676×2028 | 1660×2000×2028 | 1660×2300×2028 |
