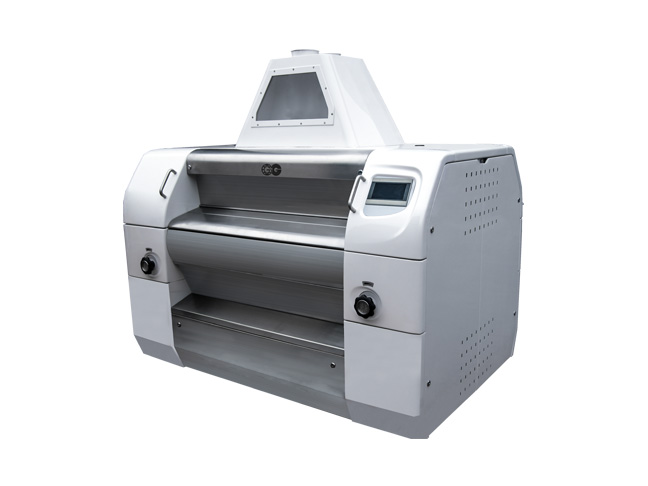

Rollermill DMFR is the core equipment in milling process. Each unit is composed of two (2) pairs of grinding rolls, divided into a fast and slow roll. Single four (4) rollermill stand. Automatic variable speed feed roll. During operation, the two rolls rotate at different speeds in opposite direction to form a shear effect thereby peeling the wheat or grinding the semolina. The roller mill has a casting base structure which is stable and low in noise during operation. Machine casing and material contact parts are SST 304.
| Model | Roller(D×L) (mm) |
Roll Dia. (mm) |
Fast roll speed (r/min) |
Speed ratio (fast roller/slow roller) |
Feed roll speed ratio | Power one (1) side | Pulley | Air pressure (Mpa) |
Weight (kg) |
Outline size L×W×H (mm) |
||
| Motor | Power (kw) |
Diameter (mm) |
Groove | |||||||||
| DMFR25/1250 | Φ250×1250 | Φ250-Φ230 | 450-650 | 1.25:1 1.5:1 2:1 2.5:1 | 1:1 1.4:1 1.5:1 1.67:1 2:1 | 6 pole | 37,30,22, 18.5,15,11, 7.5,5.5 | Φ360 | 15N(5V)model 6 groove 4 groove | 0.6 | 3800 | 2060×1478×1895 |
| DMFR25/1000 | Φ250×1000 | 3200 | 1810×1478×1895 | |||||||||
| DMFR25/800 | Φ250×800 | 2700 | 1610×1478×1895 | |||||||||
