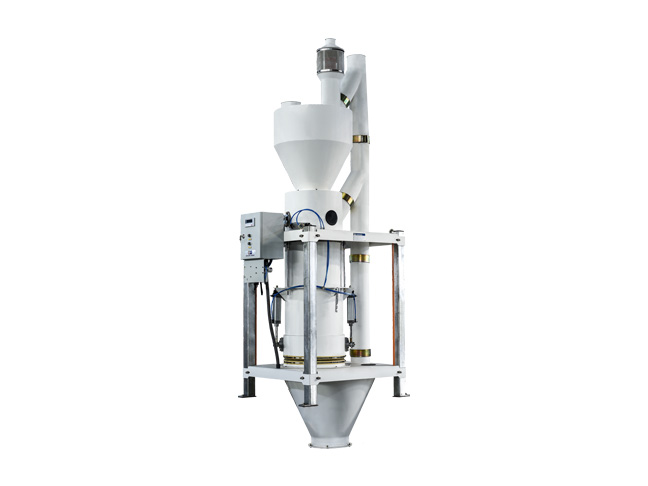

Electronic scale TLC is a non-sequential accumulating automatic scale utilized for weighing powders and granular materials within the flour mill industry. Each scale can carry out on line weighing on live material flow and can be connected to the central extraction monitoring system of the automatic control system. This can be realized by the centralized control and management for the instantaneous monitoring function of production line capacity, extraction and total products targets.
| Model | Capacity (m³/h) |
Vol. (L) |
Air con. (NL) |

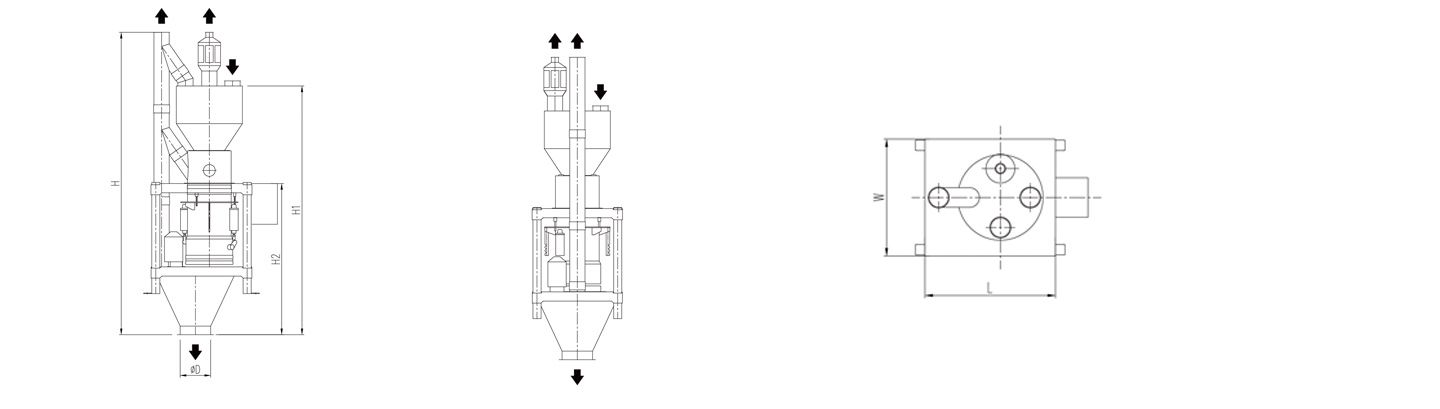

Outline size(mm) | ||||||
| L | W | H1 | H2 | H | ØD | |||||
| TLC-60 | 18 | 60 | 7.5 | 995 | 890 | 1485 | 2498 | 2963 | 300 | |
| TLC-90 | 27 | 90 | 7.5 | 995 | 890 | 1744 | 2757 | 3280 | 300 | |
| TLC-120 | 36 | 120 | 20 | 1129 | 1004 | 1685 | 2810 | 3986 | 350 | |
| TLC-170 | 51 | 170 | 28 | 1129 | 1004 | 1934 | 3110 | 3740 | 350 | |
Note:
1.Materials variable fluidity can lead different frequency.
2.Capacity=Volume(Litre)×Density×Frequency(times/h)
3.Working humidity:＜80% relative humidity
4.Working temperature:0℃-40℃
5.The max weighing speed:300times/h
