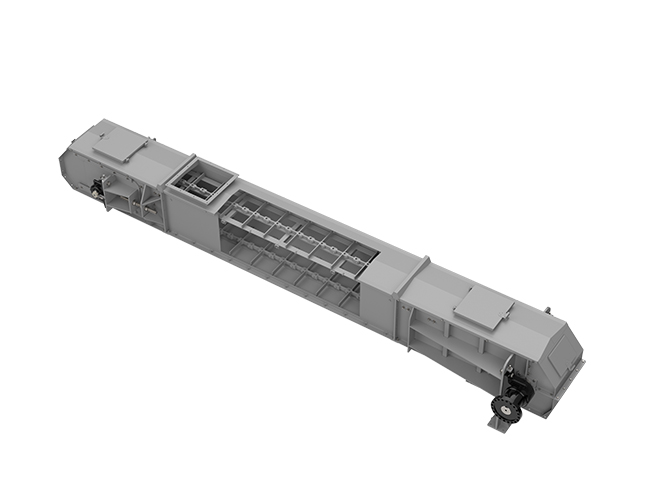

LGBM series chain conveyor is mainly used for the horizontal transportation of granular and powder materials. It is suitable for multi-point feeding and multi-point discharging.

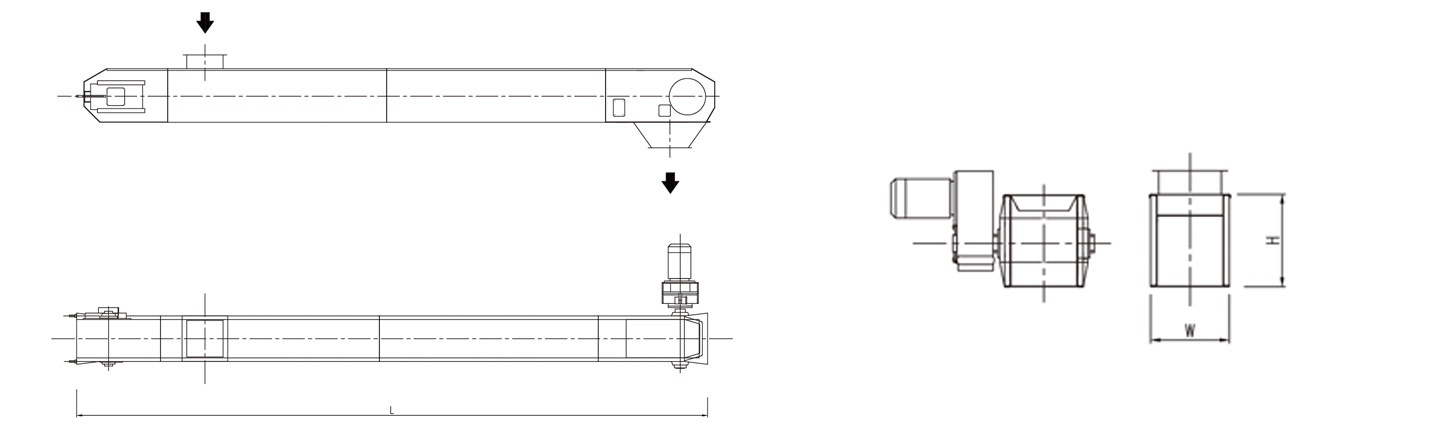

Tail section, middle section, head c/w driving unit.
1. LGBM is made of ultra-polymer wear-resistant plates, guide rails are made of wear-resistant steel or polymer wear-resistant material, with low noise and long service life.
2. Equipped with speed protection, anti-choke, broken chain alarms etc. to ensure stable operation and avoid equipment damage.
3. The tail of the equipment is equipped with chain tensioning device for quick adjustment.
4. A variety of transmission modes are optional and select depend on the layout.
5. Chain type has longer service life since it’s strong and durable.
| Model | Casing Width (mm) | Feed layer height (mm) | Speed (m/s) | Capacity (t/h) |
| LGBM-16 | 160 | 155 | 0.3~0.5 | 10~20 |
| LGBM-20 | 200 | 200 | 0.3~0.5 | 20~35 |
| LGBM-25 | 250 | 250 | 0.3~0.6 | 35~70 |
| LGBM-32 | 320 | 320 | 0.3~0.7 | 60~120 |
| LGBM-40 | 400 | 400 | 0.3~0.7 | 90~200 |
| LGBM-50 | 500 | 480 | 0.4~0.8 | 200~400 |
| LGBM-63 | 630 | 580 | 0.4~0.8 | 300~600 |
| LGBM-80 | 800 | 680 | 0.4~0.8 | 450~900 |
| LGBM-100 | 1000 | 680 | 0.4~0.8 | 550~1100 |
